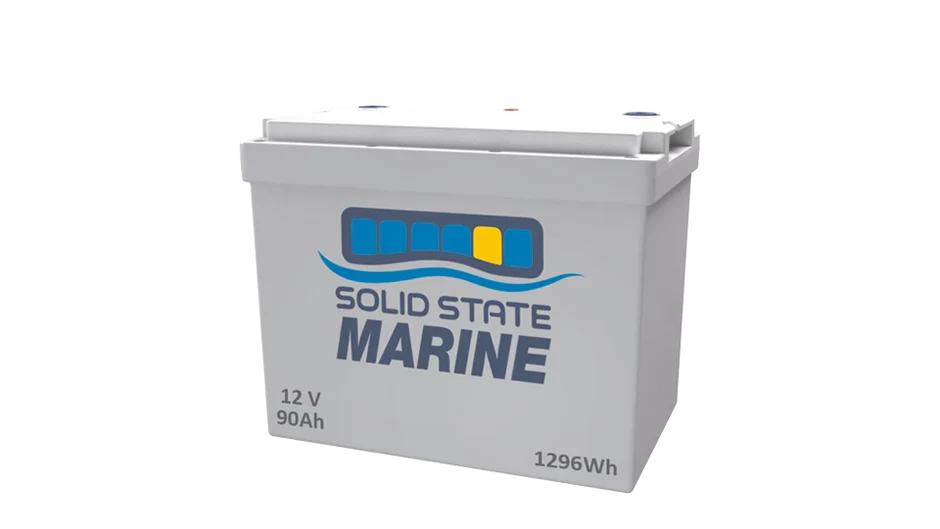

Solid Sate Marine: 12V 90Ah Deep Cycle Battery

Battery Highlights:

• More Power/ Less Weight: 50% lighter than lithium & up to 300% lighter than lead acid
• Superior Temp Performance: Operates down to -4°F without internal heater! Operates in extreme conditions up to 155°F
• Greater Safety: No internal liquids make them much less combustible than traditional lithium or AGM
• Bluetooth: IOS and Android Apps control and monitor battery functions such as State of Charge

Battery Components:

• Grade-A cells only: 3000+ cycles
• IP67 Waterproof Rating: moisture, dust, water, salt spray making it extremely reliable
• Intelligent BMS: protects against low temp, high temp, short circuit, abnormal current + more
• Low-Temp Cut-Off Protection: cuts charging and loads when below -20°C/-4°F
• ABCY Compliant: All SSM marine batteries meet ABCY standards, ensuring the highest safety for your boating or sailing needs

Specs:

Battery

- Cell Type: Solid State Lithium

- Rated Capacity：90Ah

- Nominal Voltage：14.4 V

- Energy：1300 Wh

- Weight Approx：14 lbs

- Size：L10.3" x W6.6" x H8.4" inch (Group 24 size)

- Housing Material：ABS (Flame Retardant Plastic)

- Protection Class：IP67

- Terminals：M8 bolts

- Max. Expansion (Parallel & Series): Up to 4 Batteries

- Warranty：8 Years Manufacturers Defects, 5 year FREE replacement

- Cycle Life：3000 cycles at 100% DOD (Depth of Discharge)

- Internal Resistance：≤40mΩ

- Certifications：UL 1642, UN38.3

- ABYC Compliantt: Yes

BMS

- Peak Discharge Current: 350A

- Continuous Discharge: 150A

- CCA equivalent：650

CHARGE

- Charge Method：CC/CV

- Charge Voltage：16.8V±0.6V

- Recommend Charge Current：Up to 45A (0.5C)

TEMPERATURE

- Charge Temperature：-4℉ to 155℉ / -20℃ to 70℃

- Discharge Temperature：-4℉ to 155℉ / -20℃ to 70℃

- Storage Temperature：-4℉ to 113℉ / -20℃ to 40℃

- Low-Temperature Protection：Yes (-4℉/-20℃)

- Low-Temperature Charging Protection Auto Recovery: Yes (32℉/0℃)
