Model: 12V210Ah
Weight: 31 lbs
Size: Group 27 (Top: L12" x W7.99" x H8.98" Bottom: L11.25")

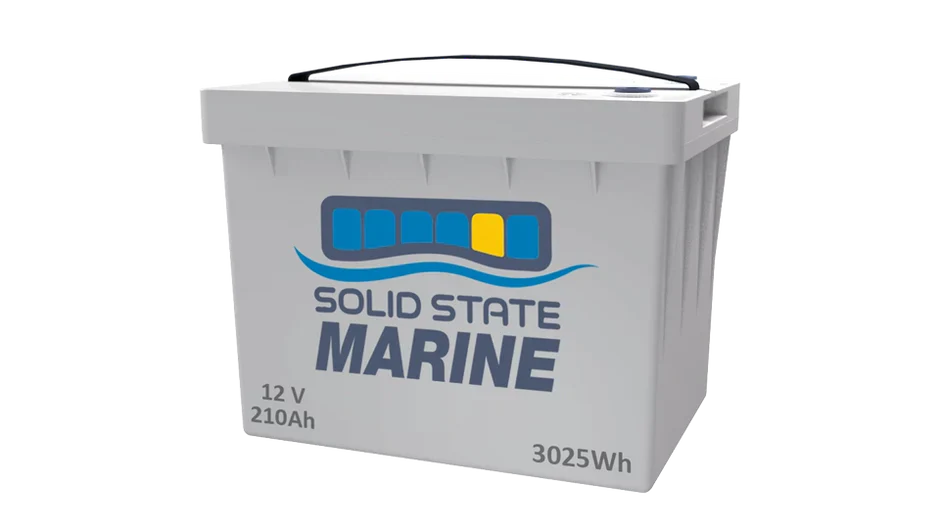

Introducing the Ultimate Marine Battery
Experience unparalleled performance with Solid State Marine’s revolutionary solid-state technology. This versatile battery is the perfect replacement for AGM or LFP batteries, suitable for both starting engines and deep cycle applications. With 1000 cold cranking amps (CCA) and a high continuous discharge rate of 210A, it ensures robust and reliable performance.
More Power / Less Weight: Delivers over 3024 Wh of power while weighing just 31 lbs., all within a compact Group 27 package!
Greater Safety: Solid state batteries have a solid electrolyte which makes them much safer than traditional lithium or AGM batteries.
Superior Temperature Performance: Operates down to -4°F without the use of a heater! Operates in extreme conditions up to 155°F
Bluetooth: IOS and Android Apps control and monitor battery functions such as State of Charge
Features:
Firewall - Multilevel safety barrier prevents unsafe and abnormal conditions
• Energy Save - Minimizes energy consumption when full power is not needed
• Recovery - Applies a high-voltage pulse charge when low-voltage, sulfation, or lost capacity is detected
• Optimization - Stabilizes internal battery chemistry for increased performance and longevity
• Interactive - Alters the charging process based on organic battery feedback.
• Rugged - Dirt, water, UV, impact and crush resistant
• Maintenance Plus - Keeps the battery fully charged without over-charging, indefinitely
• Safe - Protects against reverse polarity, sparks, over-charging, over-current, open-circuits and overheating
• Opportunity Charge - Designed to rapidly charge batteries in applications where charging is intermittent between use
Specs:
Battery
Cell Type: Solid State Lithium
Nominal Voltage：14.4 V
Rated Capacity：210Ah
Energy：3025 Wh
Weight Approx：31 lbs
Size: Top- L12" x W7.99" x H8.98", Bottom 10.75" x 7.25" inch (Group 27 size)
Housing Material: ABS (Flame Retardant Plastic)
Protection Class：IP67
Terminals：M8 bolts
Max. Expansion: Up to 4 Batteries Parallel, 2 in Series
Warranty：8 Years Manufacturers Defects, 5 year FREE replacement
Cycle Life：3000 cycles at 100% (Depth of Discharge)
Internal Resistance：≤40mΩ
Certifications: UL 1642, UN38.3
ABYC Compliant: Meets ABCY standards
BMS
Peak Discharge Current：420A
Continuous Discharge Current：210 A
CCA equivalent：1000
CHARGE
Charge Method: CC/CV
Charge Voltage：16.5V
Recommend Charge Current Up to 210A
TEMPERATURE
Charge Temperature：-4℉ to 155℉ / -20℃ to 70℃
Discharge Temperature：-4℉ to 155℉ / -20℃ to 70℃
Storage Temperature：-4℉ to 113℉ / -20℃ to 40℃
Low-Temperature Protection：Yes (-4℉/-20℃)
Low-Temperature Charging Protection Auto Recovery：Yes (-4℉/-20℃)
